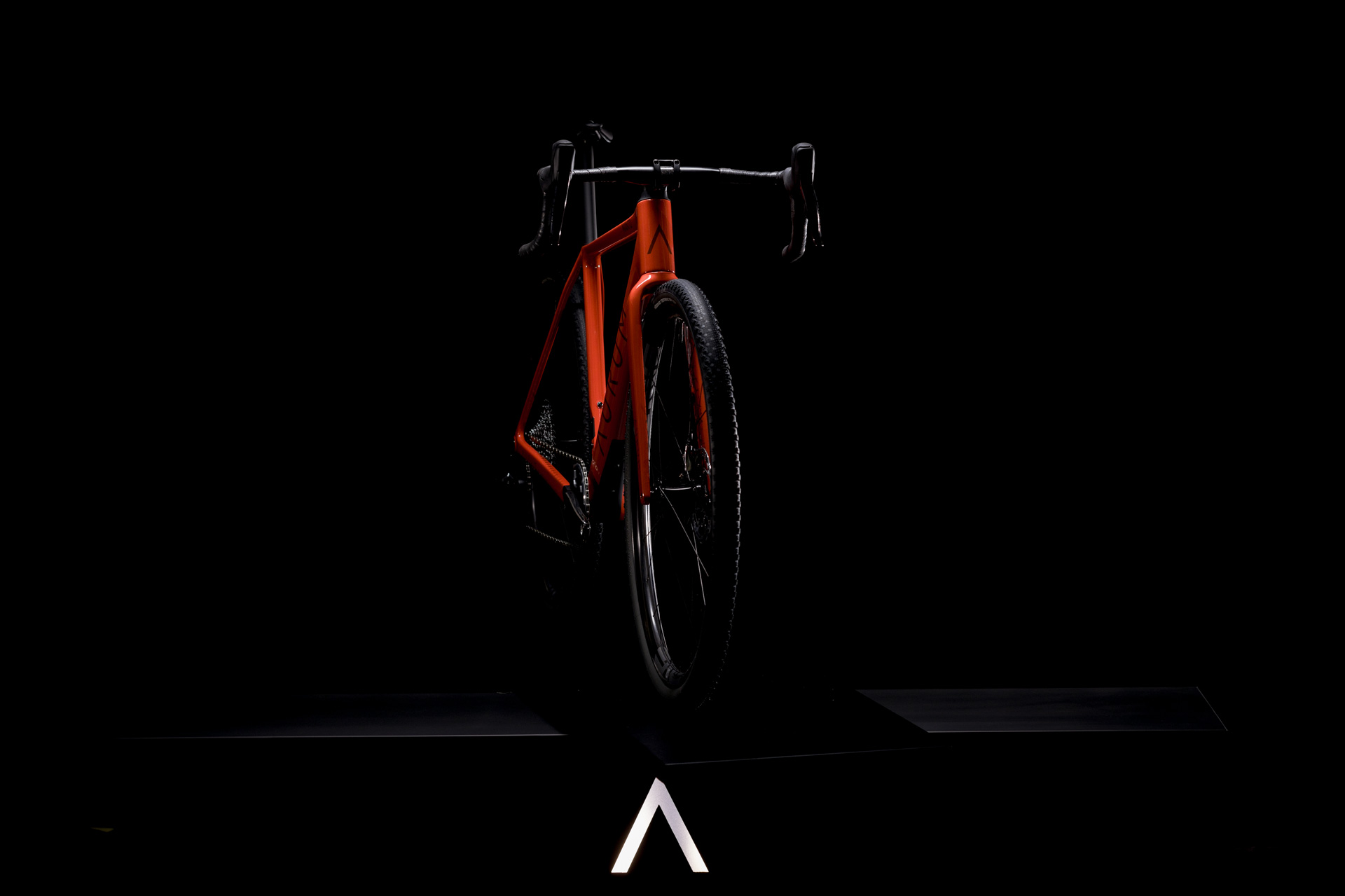

AURUM MAGMA KHAMAI
ONLY 21 UNITS WORLDWIDE

DESIGN AND PERFORMANCE MERGE INTO ONE BIKE
At AURUM, excellence is our passion. Every bicycle we create is a work of art in itself, but the AURUM MAGMA Khamai is an expression of beauty we’ve never reached before. The Khamai color, inspired by legendary cyclists like Alberto Contador and Ivan Basso, has become the essence of this limited edition of 21 units. An iridescent hue that changes with the light, turning every ride into a unique experience.

LIMITED EDITION: 21 UNITS, 21 MASTERPIECES
The AURUM MAGMA Khamai is the culmination of our passion for cycling. Each of the 21 bikes in this limited edition is a masterpiece in its own right. From its origins in the entirely manual painting process, where the exclusive Khamai color is perfectly mixed, to its meticulous assembly, we’ve taken care of every detail to offer a bicycle that goes beyond performance: it’s a work of art in motion.

MAGMA'S ETERNAL CHARM
We’ve brought together all the ingredients to create a true work of art, starting with the origin of the painting process, creating the perfect blend for the Khamai color. A handmade job, painting each piece of this series one by one to achieve the excellent finish we demand at AURUM.
It features a distinctive decal that enumerates this special series up to number 21. In addition to the signatures of Alberto Contador and Ivan Basso on both sides of the top tube of the frame.

DISCOVER THE NEW AURUM INTEGRATED COCKPIT
The AURUM MAGMA Khamai is not only a symbol of design and performance but also a glimpse into the forefront of cycling. We introduce the new integrated handlebar and seatpost designed by AURUM. This innovative piece, made of carbon fiber, takes the concept of integration to the next level, providing unparalleled bike handling and superior aerodynamics. It’s the final touch that makes the MAGMA Khamai a truly unique bicycle.
Available in handlebar configurations of 380, 400 and 420mm with stem lengths of 90, 100, 110, 120 and 130mm.

EXCLUSIVE TECHNICAL DETAILS
We’ve thought of every detail to make this Khamai Special Edition a true high-performance machine. Following feedback from Alberto Contador and Ivan Basso, we’ve equipped this MAGMA Khamai with the best high-performance wheels on the market, Lightweight Meilenstein, to offer an incredible riding experience. Continuing with a World Tour gruopset, the SRAM Red eTap AXS, synonymous with victories and success.
If we can improve, we do, which is why we rely on Ceramicspeed to harness those famous ‘marginal gains’ and optimize every watt the cyclist can generate, thanks to its pulley system, the OSPW (Oversized Pulley Wheel System), this time with a Khamai touch, as the pulley is inscribed with “AURUM Khamai Special Edition.”
TECHNICAL SPECIFICATIONS KHAMAI
FRAME / FORK
DRIVETRAIN
COMPONENTS / WHEELS
Geometry – AURUM Magma KHAMAI

Size | 48 | 51 | 54 | 56 | 58 | 61 |
---|---|---|---|---|---|---|
A. Stack | 505 | 525 | 545 | 567 | 589 | 615 |
B. Reach | 370 | 376 | 384 | 392 | 400 | 408 |
C. Seat Tube Angle | 74 | 73 | 73 | 73 | 73 | 73 |
D. Top Tube | 515 | 536 | 551 | 565 | 580 | 596 |
E. Head Tube Angle | 71.8 | 71.6 | 73 | 73 | 73 | 73 |
F. Fork Offset | 50 | 50 | 44 | 44 | 44 | 44 |
G. Fork Trail | 60 | 60 | 59 | 59 | 59 | 59 |
H. Seat Tube Length | 453 | 480 | 504 | 526 | 547 | 573 |
I. BB Drop | 74 | 71 | 71 | 71 | 71 | 71 |
J. Front Center | 570 | 584 | 580 | 594 | 608 | 624 |
K. Chainstay length | 407 | 407 | 410 | 410 | 410 | 410 |
L. Wheelbase | 965 | 980 | 979 | 993 | 1008 | 1024 |
M. Stand over height | 728 | 750 | 782 | 803 | 826 | 850 |
AURUM MAGMA KHAMAI Frameset Specifications
- AURUM Magma ECT 10 frameset (Experience Carbon Technology 10)
- CFD optimized aero fork and front triangle
- FEA optimized frame tube dimensions and shape for every size
- Internal cable routing, standard 28.6mm fork steerer tube
- Tapered 1-1/8” to 1-3/8” headset
- UCI approved, ISO-4210 safety standard approved
- BB386Evo bottom bracket
- 27.2mm round seat post with custom hidden wedge
- 12mm stealth ultralight thru-axles
- Flat mount disc brake only
Size guide
- SIZE 48 – Recommended for riders from 152 to 163cm tall (5’0” to 5’4”)
- SIZE 51 – Recommended for riders from 161 to 170cm tall (5’3” to 5’7”)
- SIZE 54 – Recommended for riders from 170 to 177cm tall (5’7” to 5’10”)
- SIZE 56 – Recommended for riders from 175 to 181cm tall (5’9” to 6’)
- SIZE 58 – Recommended for riders from 180 to 188cm tall (5’11” to 6’2”)
- SIZE 61 – Recommended for riders from 186 to 195cm tall (6’1” to 6’5”)

GARANTÍA
AURUM Magma frame and fork comes complete with the peace of mind afforded by a two-year warranty for both outdoor and indoor cycling – Which is extended to lifetime warranty when you register.
